5 Port Solenoid Valve VQZ1000/2000/3000

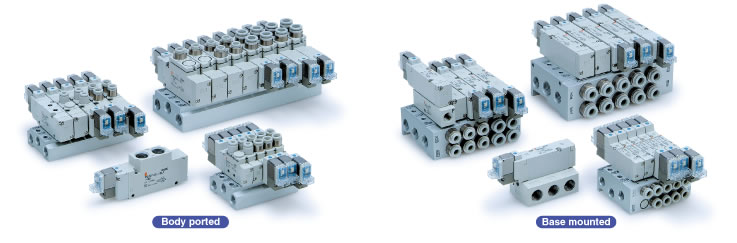

 | ・The combined mounting of a 3 port valve and a 5 port valve on a manifold valve is possible. ・Can be mounted on an aluminum body manifold or a DIN rail ・Manifold type no.: VV5QZ12, VV5QZ15, VV5QZ22, VV5QZ25, VV5QZ32, VV5QZ35 |
| Model | Flow characteristics 4/2→5/3（A/B→EA/EB） C［dm3/（s・bar）］ | Flow characteristics 4/2→5/3（A/B→EA/EB） b | Flow characteristics 4/2→5/3（A/B→EA/EB） Cv | Applicable cylinder size | Power consumption (W) |
|---|---|---|---|---|---|
| VQZ1000 | 1.3 | 0.24 | 0.32 | φ63 | 0.35(Standard) 0.9 (High pressure type, High speed response type) |
| VQZ2000 | 2.3 | 0.29 | 0.53 | φ80 | 0.35(Standard) 0.9 (High pressure type, High speed response type) |
| VQZ3000 | 4.6 | 0.26 | 1.2 | φ100 | 0.35(Standard) 0.9 (High pressure type, High speed response type) |

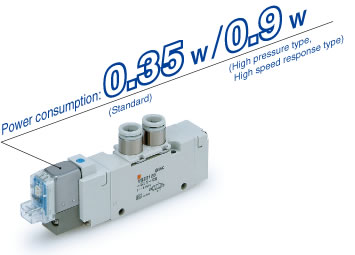

■Power consumption:
0.35 W(Standard) / 0.9 W
(High pressure type, High speed response type)
0.35 W(Standard) / 0.9 W
(High pressure type, High speed response type)

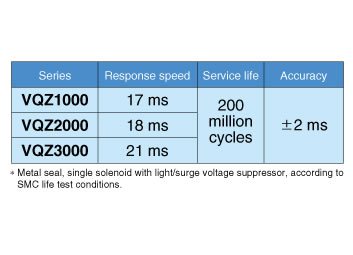

■High Speed Response and Long Service Life

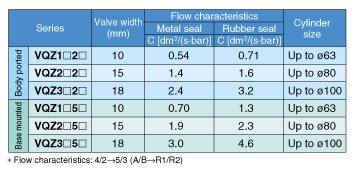

■Compact, High Flow

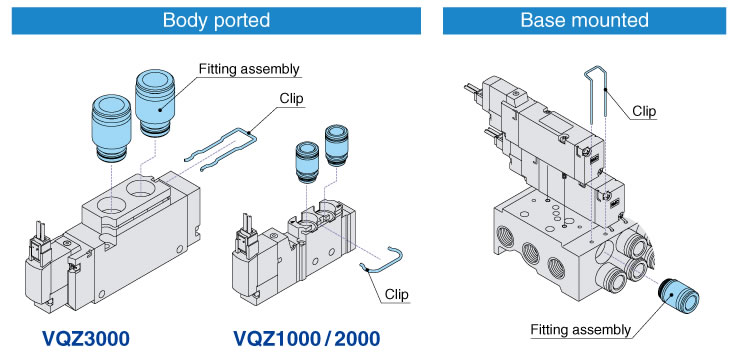

Easy replacement of clip type One-touch fitting.
■Enclosure IP65 compliant (DIN terminal, Common exhaust)
■Choice of metal or rubber seal for main valve construction
5 Port Solenoid Valve VQZ
- Product Code: VQZ 5 Port Solenoid Valve
- Availability: In Stock
-
-
